BATTERY RESISTANCE TEST FIXTURE

The battery resistance test fixture was designed for a manufacturer of electric vehicle lithium-ion batteries. The tester applies a brief, high-current load to a battery to precisely measure its' internal resistance. The fixture includes an interface to the manufacturer's Battery Management System (BMS). The software records the measured battery parameters, and the data provided by the BMS, in a production log file.

Specifications

For use with lithium-ion traction batteries up to 12V, 1000Ah
Load current settings: 100A, 200A, 300A
Pulse duration: 0.1s - 1.0s
USB interface, with no external power required
Safety features: over-current, over-voltage, over-temperature protection

Deliverables

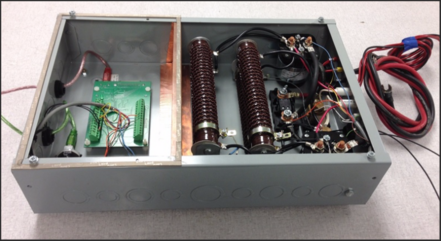

Fixture design: schematics & wiring diagrams, mechanical drawings, bill of materials (BOM)
Two (2) assembled, tested fixtures

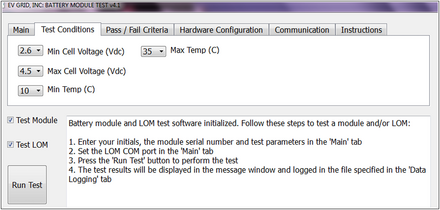

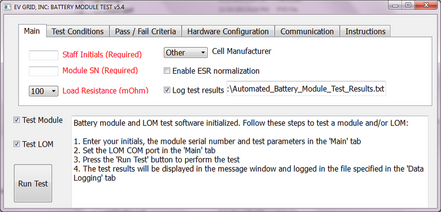

PC-based control software with intuitive graphical user interface (GUI)
Operation and calibration manual

Tools & technology

LabJack DAQ
Precision analog circuit design
Python / PyQT programming language & GUI development

Duration: six months, from initial specification gathering to shipping of finished goods. Support and warranty: one (1) year, parts and service
